Clearview Vision 500
multi fuel / wood burning stove

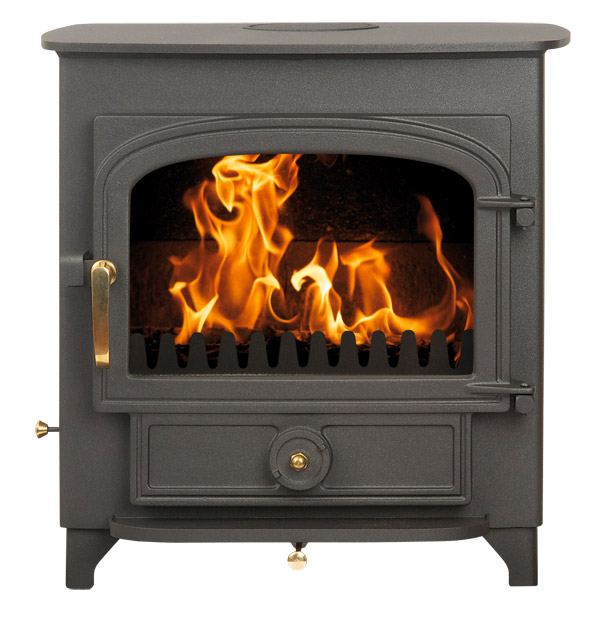

  • Clearview Vision 500 - 50mm legs
  • Clearview Vision 500 - 50mm legs

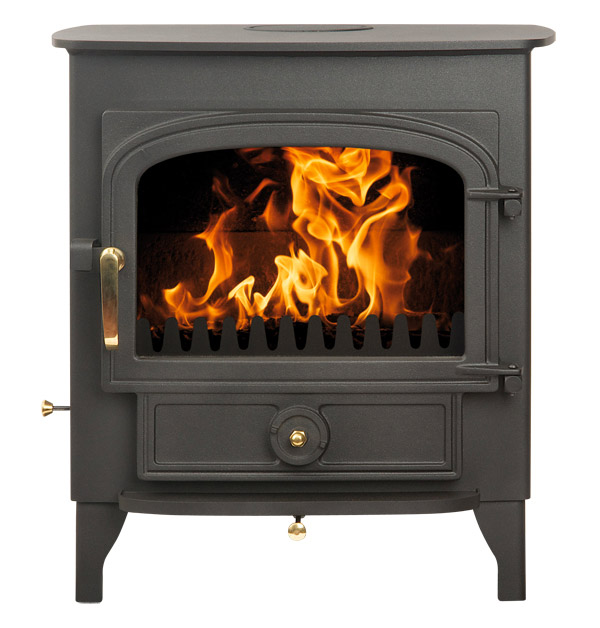

  • Clearview Vision 500 - 100mm legs
  • Clearview Vision 500 - 100mm legs

Clearview Vision 500 multi fuel / wood burning stove

Get Best Price

Share this

View Brochure

View a .pdf version of the Charnwood wood stoves brochure.

View Brochure

Clearview Vision 500 multi fuel / wood burning stove


Description

The Clearview Vision 500 multi fuel / woodburning stove was the first multi-fuel stove approved for burning wood and authorised fuel in UK smoke control areas.

The Clearview Vision 500 has a large single door for uninterrupted fire view, a deep firebox taking 15" logs with ease, integral multi-fuel grate and the flat top version has a good cooking surface.



Clearview Solution 500 in fireplace

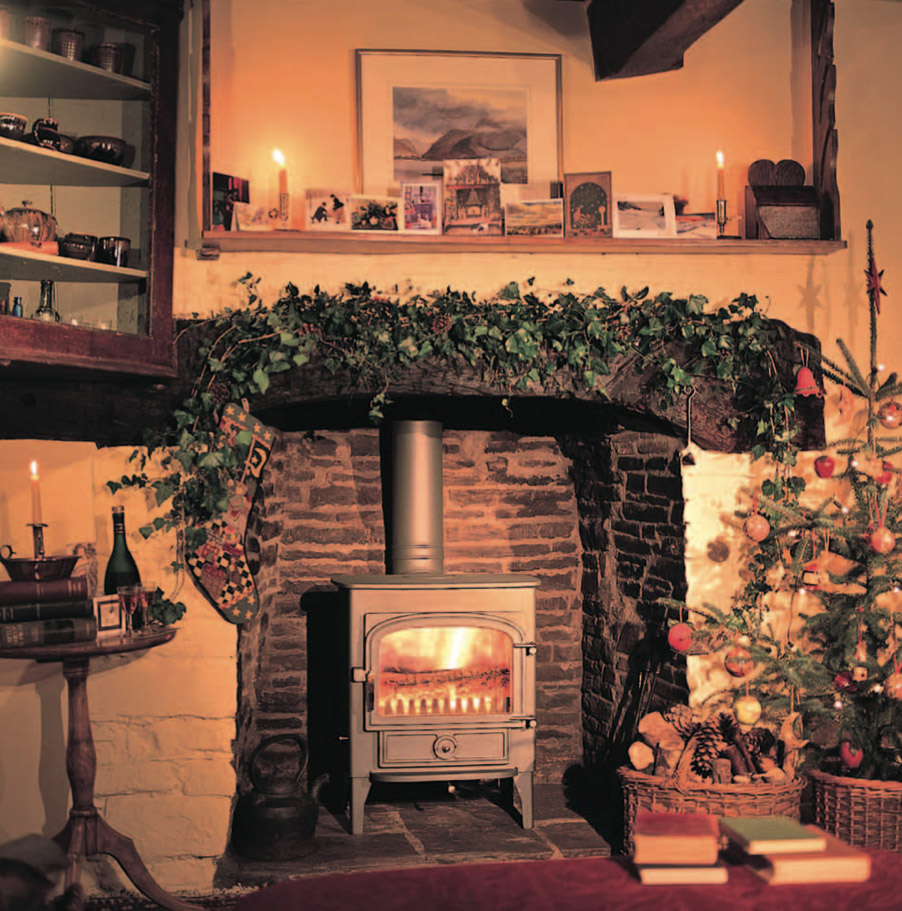

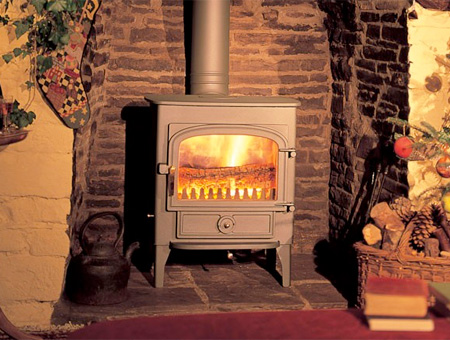

Clearview Vision 500 in fireplace


Options on the Vision 500 include top or rear flue; 50mm, 100mm or 152mm leg lengths; 300mm or 450mm log stores; 178mm or 254mm plinths; and low or high canopies.

The Clearview Vision 500 can heat your water with the addition of the 10,000 BTU boiler.


Key Features
  1. Large Clearview double glazed door.
  2. Hot ‘air wash system’ for really clean burning without fuss or pampering.
  3. Independent up draught and down draught air distribution system for maximum response and control.
  4. Refractory lining, promoting clean combustion.
  5. Large Vision 500 hot plate surface for coffee pot or kettle.
  6. Multi-fuel, both wood and coal burn equally well.
  7. Rotary grate for easy riddling.
  8. Heavy steel construction – welded inside and out for durability and long life.
  9. Stainless steel ash pan for easy ash removal.
  10. Optional top or rear 150mm (6 inch) diameter flue.
  11. Adjustable hinges and door catch to maintain air tightness throughout the life of the Vision 500 door seals.
  12. Solid brass removable door handle.
  13. Adjustable levelling bolts, for easy adjustment on uneven hearths.
  14. Maximum gross heat output: 8kw

Options
  1. Available in a range of seven colours to compliment your decor.
  2. Satin chrome door handles and fittings.
  3. Optional top or rear flue outlet.
  4. External air system, for a direct connection to an outside air supply.

Boiler Options
  1. 10,000 Btu. stainless steel boiler


Clearview Vision 500 links
  1. Clearview Stoves website
  2. Video: Tales from a Cleaarview fireside

FUEL TYPE

Wood burning / multi fuel


EFFICIENCY %

N/A


HEAT OUTPUT

8kW


DIMENSIONS

Height - 582mm
Width - 582mm
Depth - 410mm


FLUE SIZE

150mm


MATERIAL

Steel


WEIGHT

125Kg (flat top without boiler)


MAX LOG LENGTH

380mm (15 inch) approx

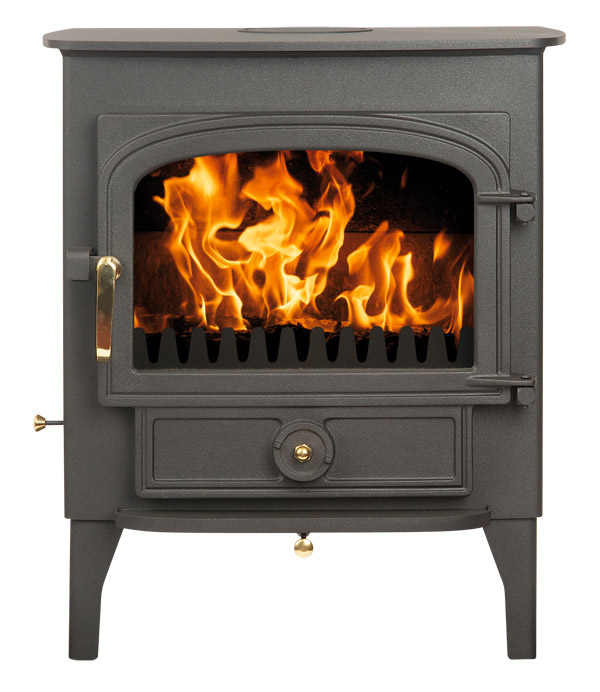

Clearview Vision 500 - 152mm legs
Clearview Vision 500 - 152mm legs

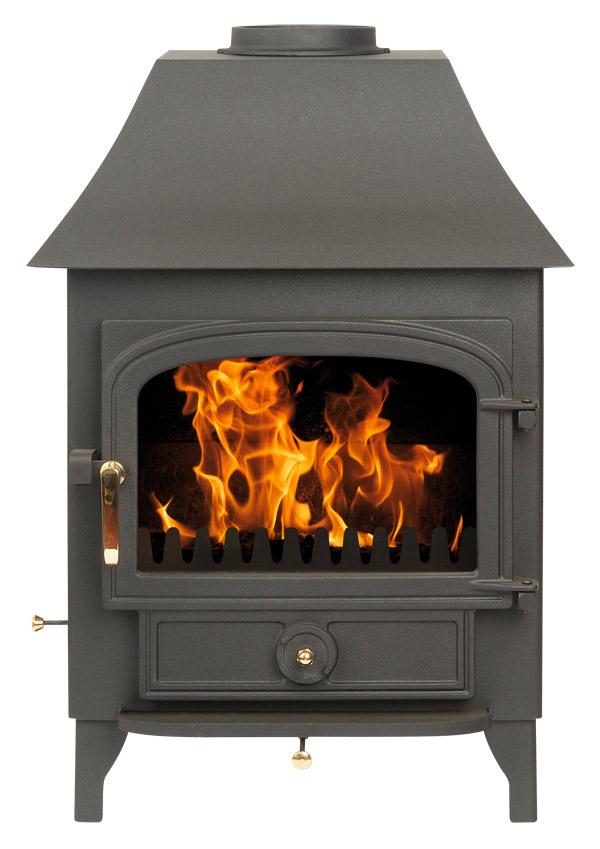

Clearview Vision 500 - Low Canopy - 100mm legs
Clearview Vision 500 - Low Canopy - 100mm legs

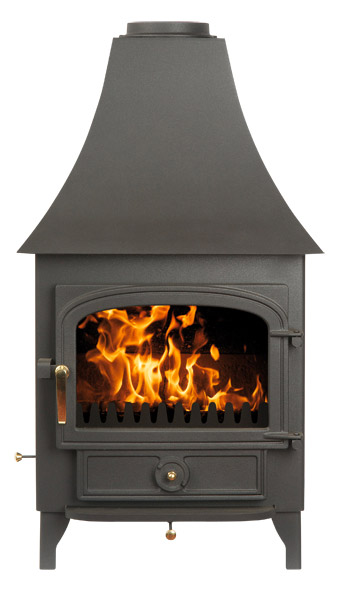

Clearview Vision 500 - High Canopy - 100mm legs
Clearview Vision 500 - High Canopy - 100mm legs

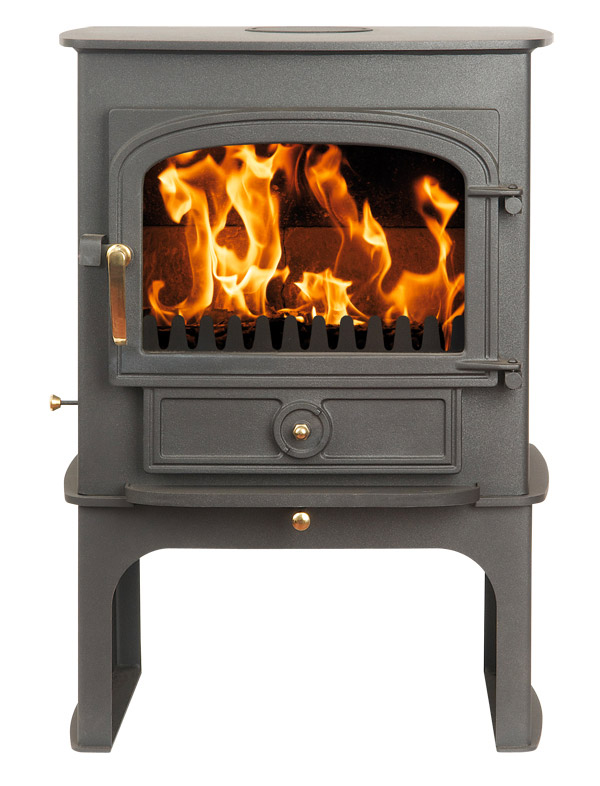

Clearview Vision Flat Top - on 300mm Log Store
Clearview Vision Flat Top - on 300mm Log Store

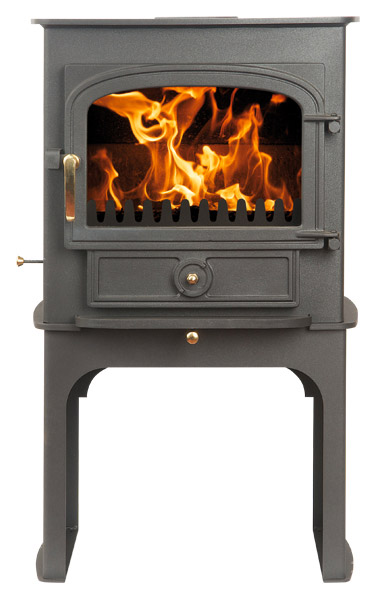

Clearview Vision Flat Top - on 450mm Log Store
Clearview Vision Flat Top - on 450mm Log Store
